3 Axis CNC Milling Machine Metal Milling And Lathe Boom SMTCL Vertical Machining Center

Name: 3 Axis CNC Milling Machine Metal Milling And Lathe Boom SMTCL Vertical Machining Center
Brand: SMTCL/SYMG
Price: 1 USD

Quality 3 Axis CNC Milling Machine Metal Milling And Lathe Boom SMTCL Vertical Machining Center wholesale

Brand Name : SMTCL/SYMG

Model Number : VMC 850 Q

Certification : ISO certification

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50 sets per month

Delivery Time : 45-60 days

Packaging Details : The wooden case，Tin trunk ,Other seaworthy packing

product name : BT40 Lathe machine

CNC Control System : FANUC, Siemens

Table Travel (X) (mm) : 850

Table Travel (Z) (mm) : 540

Repeatability (X/Y/Z) (mm) : 0.004

Feed Speed(mm/min) : 1 - 20000 mm/min

X /Y/Z Axis travel : 850mm/500mm/540mm

X/Y/Z axis rapid speed : 48/48/48 m/min

Main motor power : 7.5/11KW

Overall dimensions : 2400x3125x2840mm

Contact Now

VMC 850 Q The Fine Quality SMTCL SYMG VMC CNC Vertical machining center Lathe machine FANUC system

Lathe machine Overview

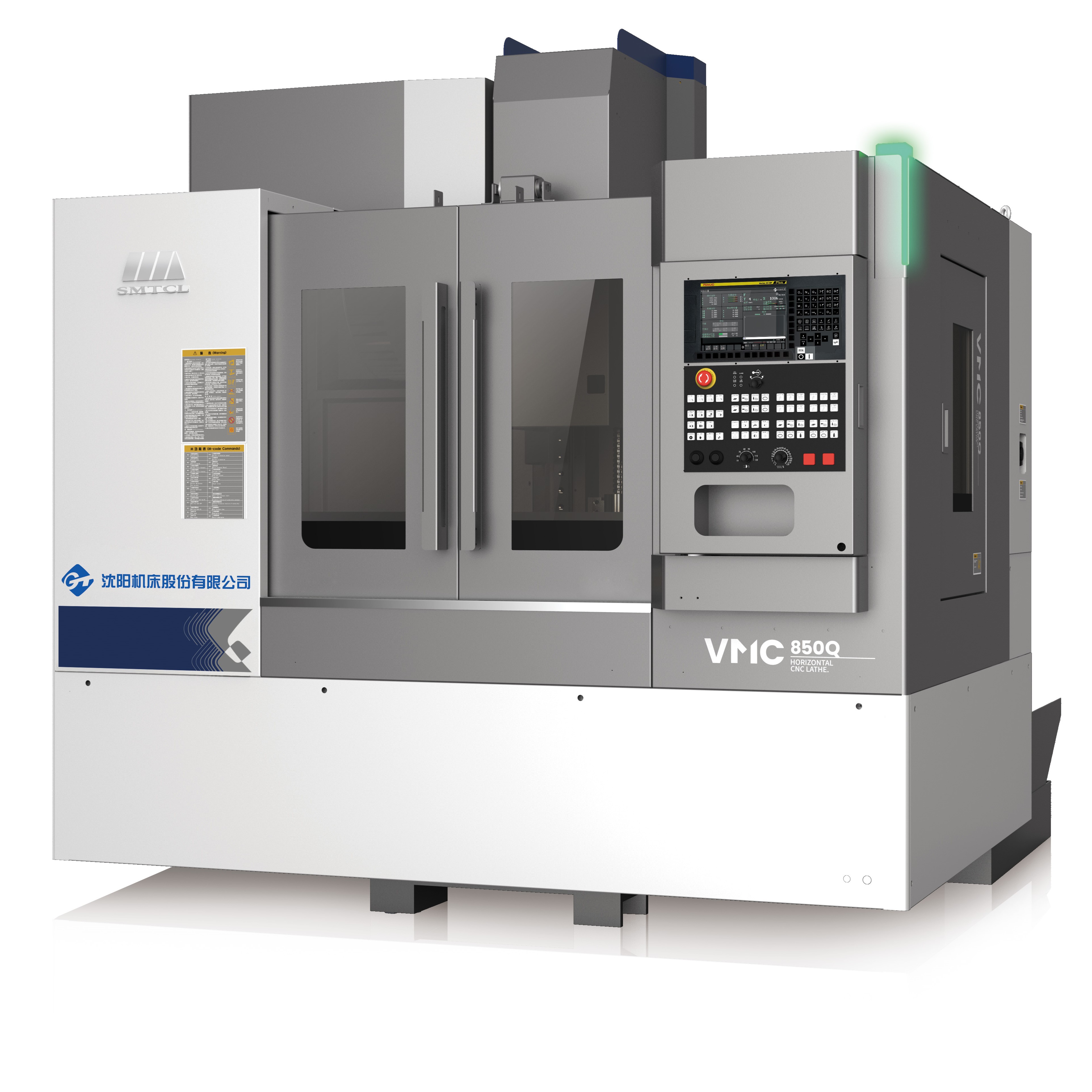

VMC850Q Vertical Machining Center

This new generation VMC850Q vertical machining center adopts vertical frame layout, cross slide structure, high rigid herring column, inverted trapezoidal spindle box, low center of gravity, high rigid bed, three axis roller guide rail, to ensure the machine good running accuracy, high strength and excellent precision stability; The machine structure is simple and compact, the floor area is small, is conducive to the assembly of automatic line; Can be milling surface, drilling, boring, reaming, 2D and 3D surface processing, tapping and other processes of the integration of high-precision machining. Simple operation, high speed and high efficiency, intelligent and stable.

Lathe machine SPECIFICATIONS

Main technical specifications

Main Technical Parameters

Item		Unit	Specifications
Capacity	X axis travel	mm	850
	Y axis travel	mm	500
	Z axis travel	mm	540
	Spindle nose to table surface	mm	120-660
	Spindle nose to column surface	mm	640
Worktable	Table size (L×W)	mm	1000×500
	Max load on the table	kg	600
	T-slot size	mm	18×5
Spindle	Spindle speed	rpm	10000
	Spindle taper/spindle shank	mm	7/24 taper
	Spindle taper/spindle shank	mm	BT40
	Spindle motor	kw	7.5/11
	Maximum output torque	N.m	35.8/70
	Spindle drive type		Synchronous tooth belt
Feed rate	X,Y,Z rapid traverse	M/min	48/48/48
Feed rate	Max cutting feed rate	M/min	20
A.T.C	Tool storage capacity	pc	Arm type 24
	Max tool diameter	mm	150(80)
	Max tool length	mm	250
	Tool change time(T-T)	sec	2.5
Accuracy	Positioning accuracy X/Y/Z	mm	0.008/0.006/0.006
Accuracy	Repeatability positioning X/Y/Z	mm	0.005/0.004/0.004
Others	Overall dimensions(L×WxH)	mm	2400×3125×2840
	Net machine weight	kg	5100
	Total power requirment	KVA	18

Lathe machine Standard

1. FANUC OI-MF TYPE(5)β control system 2. 10000 RPM spindle , belt connected 3. 24 disc manipulator tool magazine 4. Water tank + bed flushing chip 5. Clean air gun, working light, warning light

Optional Lathe machine

1. Fanuc Oi-MF TAPE(l)β system 2. Fanuc Oi-MF TAPE(l)α system 3. Siemens 828D CNC system 4. Direct connection 12000 RPM mechanical spindle 5. 16000 RPM, 24000 motorized spindle 6. 4th axis turntable 7. Cooling inside 2MPa, 3MPa,5MPa,7MPa 8. Oil-water separator 9. Chain chip remover 10. Clean water gun 11. Tool and workpiece inspection 12 . automatic door 13. Safety door lock 14. Electric cabinet and air conditioning

Main accuracy

The accuracy of the machine implements the acceptance standard GB/T18400.2-2010 Acceptance standard for machine tool positioning accuracy and repeated positioning accuracy GB/T18400.4-2010

Inspection items		Factory standard
Machining accuracy		IT6
Positioning accuracy	X axis (mm)	0.008
	Y axis (mm)	0.006
	Z axis (mm)	0.006
Repeat positioning accuracy	X axis (mm)	0.005
	Y axis (mm)	0.004
	Z axis (mm)	0.004

Main configuration

Main configuration of machine tool and list of purchased parts

Item	Specifications	Brand	Remarks
CNC system	FANUC Oi-MF PLUS TYPE(5)	FANUC
Main motor	βiI 8/12000-B	FANUC
X-axis motor	βiSc 12/3000-B	FANUC
Y-axis motor	βiSc 12/3000-B	FANUC
Z-axis motor	βiS 22B/3000-B	FANUC
X-axis screw bearing	30×62×15	NSK/FAG/NACHI/NTN
Y-axis screw bearing	30×62×15	NSK/FAG/NACHI/NTN
Z-axis screw bearing	30×62×15	NSK/FAG/NACHI/NTN
X-axis ball screw	φ40×16,C3	THK/PMI/HIWN
Y-axis ball screw	φ40×16,C3	THK/PMI/HIWN
Z-axis ball screw	φ40×16,C3	THK/PMI/HIWN
X-axis guide way	35	THK/REXROTH/PMI/HIWN
Y-axis guide way	45	THK/REXROTH/PMI/HIWN
Z-axis guide way	45	THK/REXROTH/PMI/HIWN

3 Axis CNC Milling Machine Metal Milling And Lathe Boom SMTCL Vertical Machining Center

FEATURES AT A GLANCE

Simple structure and excellent performance

A Lead screw: pre-drawn

B Guide rail: roller

C Spindle: 10000 RPM

D Headstock: high rigidity

E Pillar: herringbone type

F Bed: large incline

A Lead screw: pre-drawn The three-axis lead screw adopts the installation method of fixed two ends, and with 40 large diameter high precision ball screw, the best speed response and positioning accuracy can be obtained by pre-stretching treatment.

B Guide rail: roller Roller linear guide rail is selected for three axes to increase bearing capacity and enhance the overall rigidity and reliability of the machine tool. Linear guide has small vibration at high speed and no crawling at low speed to ensure machining accuracy.

C Spindle: 10000 RPM 10000 RPM high speed spindle, bearing imported P4 special bearings, with high precision, high rigidity; The main shaft has passed the dynamic balance correction test before leaving the factory.

D Headstock: high rigidity High rigidity structure spindle box design, improve the cutting resistance of the machine tool and effectively reduce the vibration of the spindle, to ensure the machining accuracy and surface finish of the parts.

E Pillar: herringbone type Classic "human" type structure, solid and stable, effectively maintain the processing stability and load-bearing capacity at high speed displacement.

F Bed: large incline Large tilt Angle bed, effectively promote the removal of debris. The interior of the bed adopts box-type structure design, which is strong and reliable, effectively improving the rigidity and stability of the product.

Processing case

Q1: How can I get a quotation?

A:Leave massage with your purchase requirements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.

Q2: Can you provide customized machine or SPM (Special purpose machine)?

A:Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q3: What's your warranty terms?

A:We will supply a replacement for parts that prove to be defective for a period of 12 months, starting on the machine's bill of lading date.

Q4: Why choose your company?

A:Products from the development, design, manufacture, assembly of the entire production process are carried out between plants with a complete production chain which is your most reliable guarantee. And most of the CNC brands can be chosen as the users' needs.

Q5: Does the standard accessories are included in the price?

A:Yes, all of our prices include listed standard accessories.

Q6: Can your company send the technical personnel to our company and direct our workers overseas?

A:We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q7: How can I choose the most suitable machines?

A:Please list your specifications or the products drawing, we will choose the most suitable machines for you.

Q8: What's your main products of your company?

A:We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center, Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
